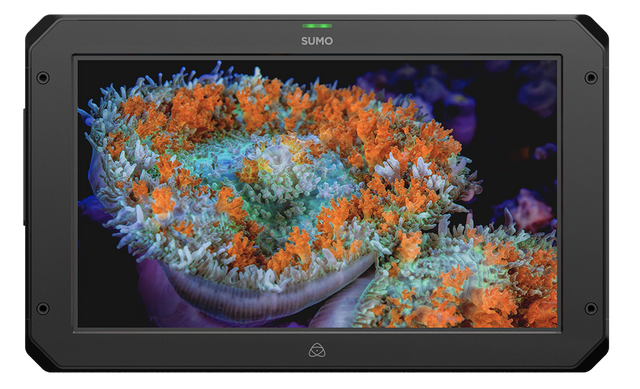

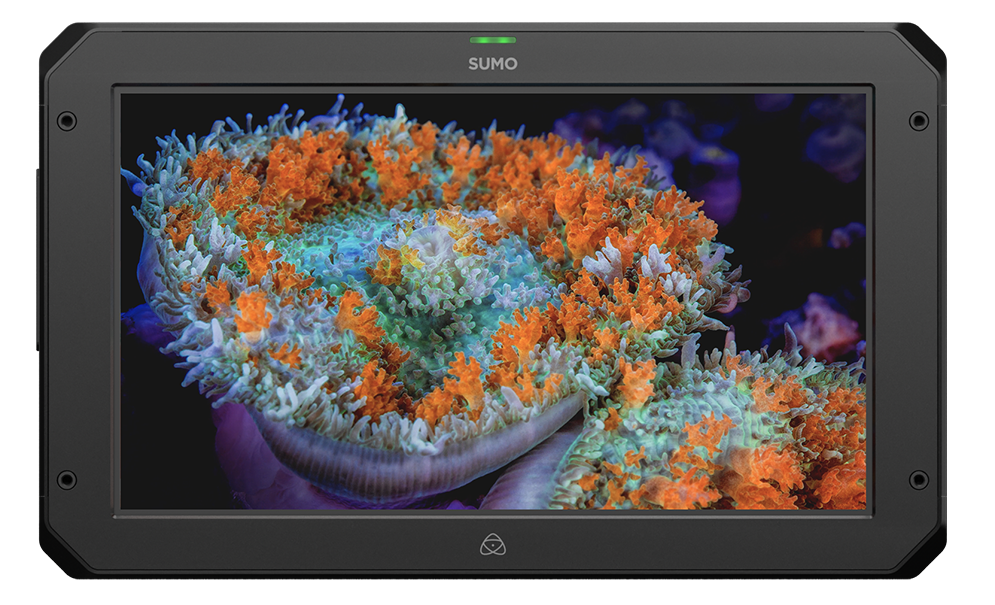

Sumo 19
The perfect on-set monitor-recorder and switcher. Sumo’s 19” screen allows you to really see what’s going on in your image.
Proven.Reliable.
With a bright (1200nit), HDR touchscreen covering the DCI-P3 (P3) Color Gamut, the ability to record Apple ProResRAW up to 6Kp30, and a rugged and versatile design, the SUMO 19SE is the perfect addition to an on-set video village. With four independent inputs it can also be be used to switch and record each ISO stream up to 1080p60 and has full-sized XLR connectors for professional audio workflows.
Rugged and versatile design suitable for every application
1200nit HDR
Touchscreen
ProRes RAW
Up to 6K
4x ISO+Program
Record
Live Switch
Program Out
Record up to 6Kp30 ProRes RAW
Unlock the true potential of SDI RAW cinema cameras with the Sumo 19SE. Preserve the pristine quality of the data from the camera sensor by recording in Apple ProRes RAW at up to 6Kp30, 4Kp60 DCI/UHD, and 2Kp240 DCI/HD, or record in CinemaDNG at up to 4Kp30 DCI. Sumo 19SE is compatible with the Sony FS series cameras, Canon C300MKII/C500, Panasonic EVA-1/Varicam LT, and more.
10-bit ProRes and DNx up to 4Kp60
Video from any camera or digital video source can be captured via SDI or HDMI. Record up to 10-bit 4:2:2 in Apple ProRes or Avid DNxHR codecs at 4Kp60. With support for multiple inputs via SDI, the SUMO 19SE provides the ability to record up to 4 x inputs and also supports ProRes LT and DNxHD 36 for extended recording times.
High-bright & HDR monitoring
With 1200nit brightness, 19-inch, 1920 x 1080, and 10-bit processing all built into a rugged enclosure, the SUMO 19SE is at home in any location. SDI and HDMI i/o supports a wide range of inputs and provides signal cross conversion with 4K>HD down conversion options.
Live Quad-channel HD Switching & Recording
Record up to four 1080p60 streams simultaneously (via 3G SDI Level A Only) as separate ISOs, as well as a fifth “program” channel of your switched feed, whilst cueing and switching in real-time. Display the resulting mixed output (via HDMI or SDI) live on set or use an HDMI to USB capture device to output the switched feed for live streaming. Switching is asynchronous, eliminating the need for expensive locked sources and allowing the use of more affordable cameras that do not support timecode/genlock inputs.
Two stereo balanced XLR inputs with 48V
The full-size XLR connectors with 48V phantom power allow you to connect two external microphones with balanced analog audio recording and monitoring. The SUMO 19SE also has dedicated meters, gain controls, and adjustments for frame delay on each channel. Mic or line-level audio can be seamlessly synchronized with embedded audio from HDMI and SDI sources.
