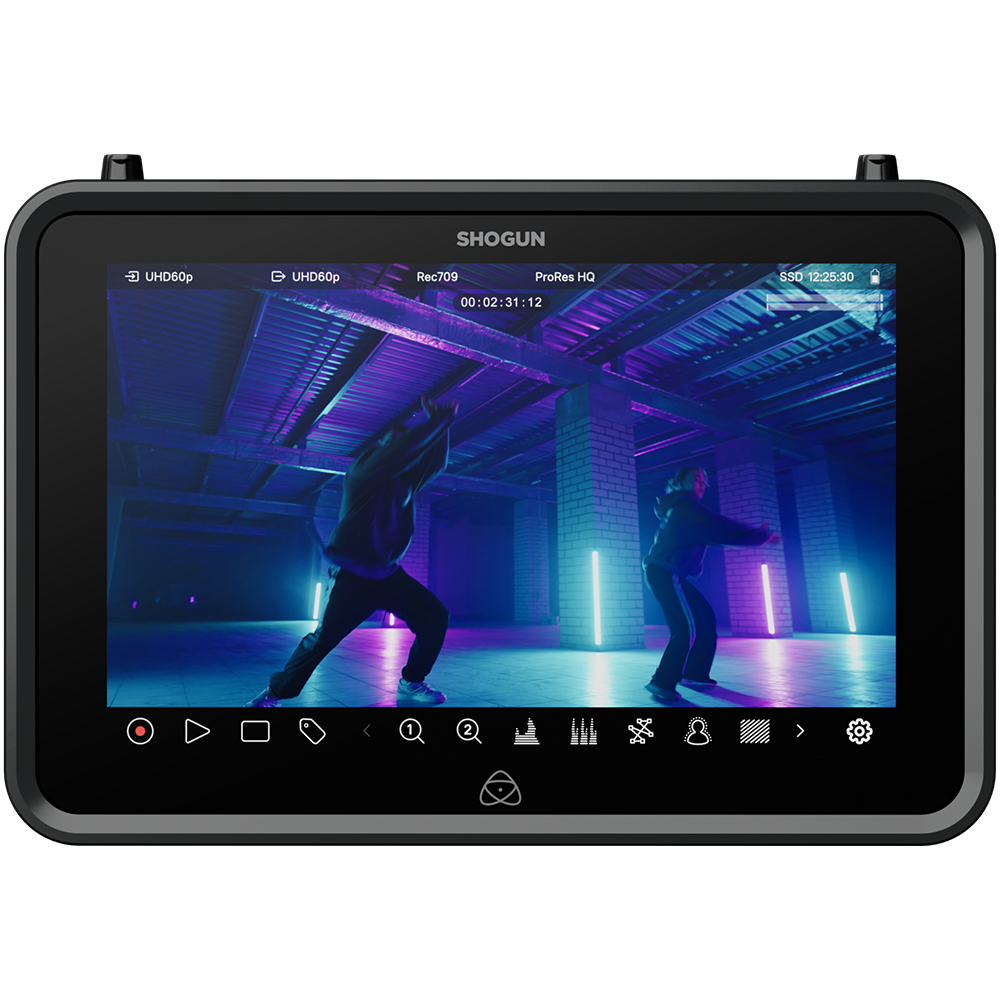

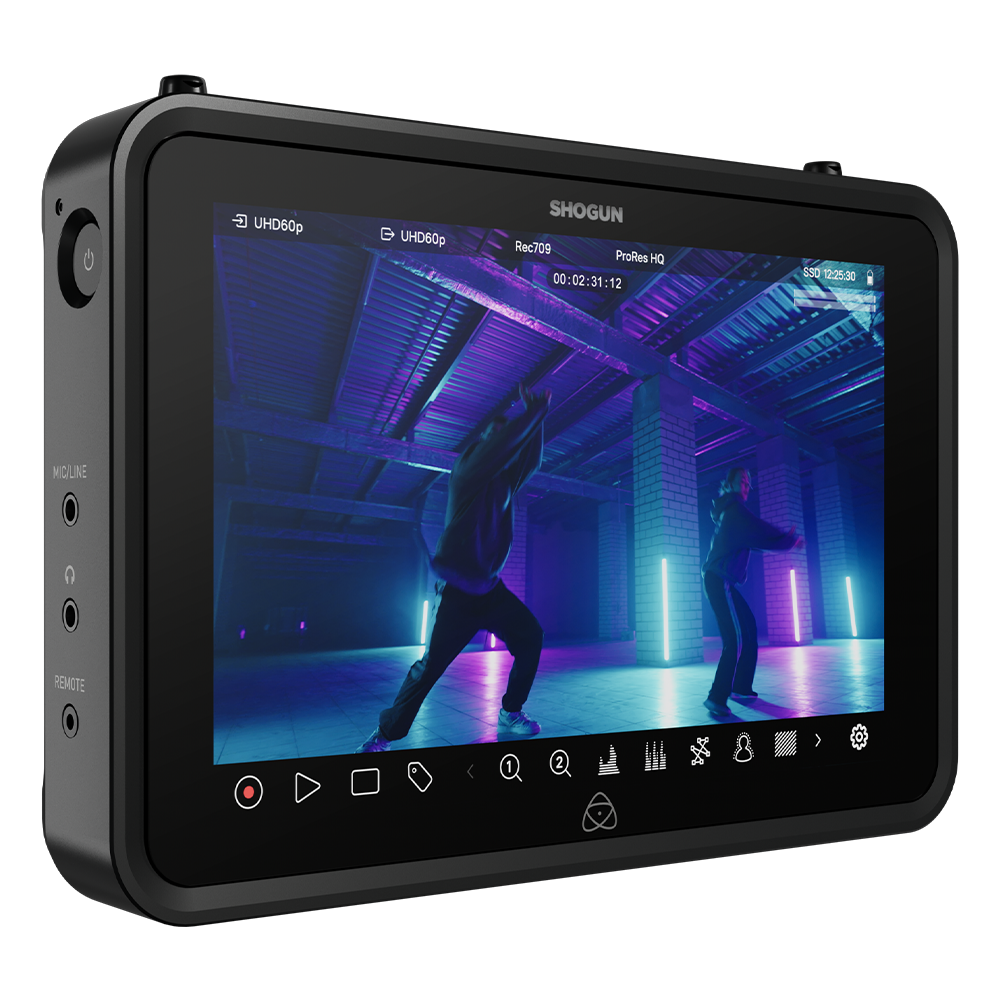

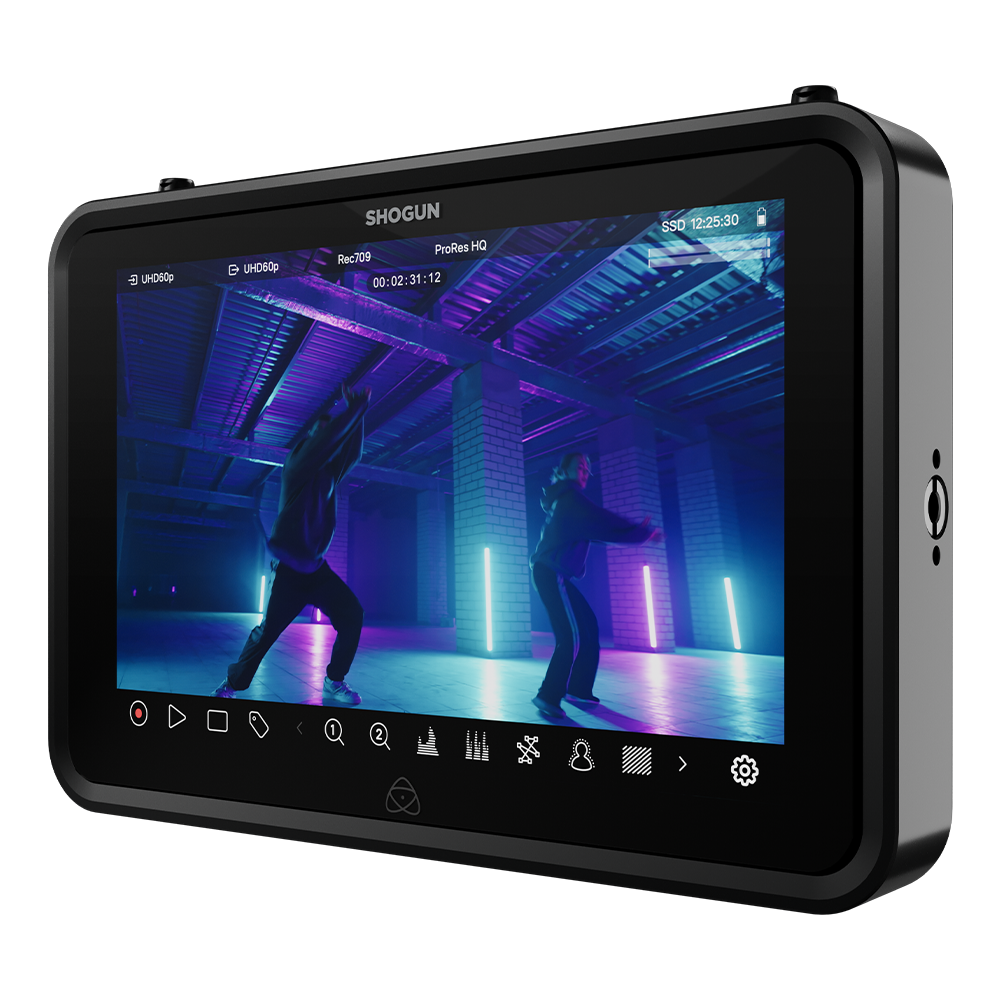

7-inch monitor-recorder with integrated networking for cloud workflows, ideal for DSLR, mirrorless and cinematic cameras. More codecs & monitoring tools than ever before.
Up to eleven
The original Shogun gave filmmakers what they had been asking for. All the Ninja’s talents, with a bigger, 7-inch super-bright screen and both HDMI and SDI I/O. Today’s Shogun is bolstered by new abilities from AtomOS 11, massive connectivity from integrated networking, more codecs, and compatibility with almost every camera. Shogun is the Atomos dream writ large.
All the connectivity you’ll ever need
- Solid Internet
Network connectivity with Wi-Fi 6 and GigE. - Wireless Sync
Long-range robust wireless sync and control with AirGlu RF. - Third-party Sync
Third-party sync and app control with Bluetooth AirGlu BT. - USB-C Port
For future updates. - More Power Options
Multiple power options with NP battery slot and separate 2.1mm locking jack DC input. - SDI Out
Separate SDI Out for comprehensive SDI<>HDMI cross-conversion.
Super bright screen
Shogun’s super-bright, large 7-inch screen is viewable in almost every kind of light. Indoors, outdoors, or anywhere you need critical, viewable, instant feedback on your images. With 2000 nits brightness, it’s ideal for checking your HDR footage while you’re still on set. Or play back your recently captured shots on the same pristine screen for review or even uploading to the cloud.
What’s new, at a glance.
- Brand New OS
New AtomOS 11 - faster, cleaner, with more features - More Codecs Included
6K ProRes RAW, ProRes, DNxHD & H.265 - all for free - 4K H.265 Recording*
Record & upload high bitrate 4K files to the Cloud
*Available when subscribing to Classic and Premium Atomos Cloud Services - Improved Monitoring
With EL ZONE System™ exposure and ARRI false color - RecordAssist
Set a time for your recording to start - PlaybackAssist
Set a time for your Shogun to play out files or sequences - TimeLapse
Set up time-lapse recording and control it from your Shogun - Segment Pro**
Automatically split files when they reach a set size/duration
** Coming late 2023 - RemoteView
Share live camera views from your Shogun’s screen over the public internet - Wi-Fi 6
Fast, stable connection to the internet - Atomos Care360
Premium extended warranty that covers unforeseen damage
Enhance your camera
The new Shogun has an ultra-bright, 7-inch HDR screen that’s easily visible outdoors. Capture RAW video from a vast range of DSLR, mirrorless and cinematic cameras with either SDI or HDMI connections. It’s packed with on-screen tools for focus, exposure, customer LUTs and metadata. Shogun takes care of your workflow while you focus on creative ideas.
Improve your shots through accurate framing and check your exposure and focus on a clear, bright screen. We work with all popular camera manufacturers to support the widest range of cameras. Not just for recording uncompressed video via HDMI or SDI but working with RAW formats and being able to stop/start trigger the camera’s own recording.
Ready to RAW
Shogun can capture RAW inputs up to 6K at 30fps and simultaneously output a standard viewable video signal via HDMI or SDI for devices that don’t support RAW formats.
With a versatile 7-inch SuperAtom IPS touchscreen for clear images and easy accessibility to the features in AtomOS, Shogun now has a new operating system and user interface. The screen is designed for outdoor usability, with a generous 2000nits, viewable even in direct sunlight. You can also adjust the screen for optimum performance in dimly lit locations.
Introducing AtomOS 11
Cleaner, fresher, faster
Introducing a new version of our operating system, AtomOS 11. Built uniquely for the new Ninja and Shogun series, it not only looks beautiful but introduces a host of great new features. We’ve made the tools more visible and improved the icons so you know exactly what you’re selecting. It’s easier to use, more logical and feels more professional. AtomOS 11 unleashes the full potential of Shogun with new firmware that optimizes memory management for greater responsiveness.
Colorized Exposure
EL Zone System™ exposure referenced colorized image and ARRI False Color
An important new addition to AtomOS 11, EL Zone and ARRI colorized exposure display is a powerful alternative to Atomos false color. It allows Atomos monitors to display consistent colorized exposure across multiple monitors in a production pipeline. EL Zone is designed for camera operators, who can see the true and precise scene-referred dynamic range, colorized in stops, directly from the camera. It’s ideal for assessing exposure in both HDR and SDR production. An established industry standard, it’s the best way to see colorized exposure on a monitor.
TimeLapse
Set up time lapse recording and control it from your Shogun, completely independent of your camera’s controls. Use the Shogun’s screen for accurate visual alignment and its massive removable storage for longer projects.
RecordAssist
Set a time to start recording. It’s ideal for covering pre-arranged events when you need to be somewhere else. If you have several Shoguns, you can even record in multiple locations simultaneously. It’s also a safer way to cover dangerous locations without risk to you and your colleagues. Finally, it’s perfect for wildlife shooting. Want to capture the action by the riverbank at sunset? Just dial-in the time and come back later.
Multiple Codecs
The new Shogun line includes these codecs free of charge, so you can choose the ideal codec for your projects.
- Apple ProRes
- Apple ProRes RAW
- H.265
- DNx (QuickTime)
- DNx (MXF)* coming later in 2023
- Apple ProRes is pre-activated to use out of the box, so you can start shooting immediately. To activate
- H.265 and DNx, visit my.atomos.com to register your Shogun and follow the simple online instructions.
To activate Apple ProRes RAW, you need to go to my.atomos.com. There is a small additional step to get an activation token to access the codec for free. Simply plug in your compatible RAW camera to complete the process. You only need to do it once to unlock this super-flexible and unique codec without time restrictions.
NDI HD TX
NDI is a way to send video over ordinary networks (including Wi-Fi and mobile) in high quality but with remarkably low bandwidth requirements. It’s increasingly used in live production, and now your Shogun can take part in an NDI environment. The NDI TX option turns your Shogun into an NDI source, visible to all other authorized devices on the network.
PlaybackAssist
Set a time for your Shogun to play out files and even sequences. Connected to a large screen with HDMI, this is ideal for advertising and digital signage – or just displaying your work at the highest quality.
Feature-packed, even more versatile
You can pair the new Shogun with a huge range of video, DSLR, mirrorless or cinematic cameras. Choose from a selection of industry-standard recording formats, including Apple ProRes. Pick the best frame size, frame rate, and codec for your project and delivery requirements. Shogun also allows you to record HDMI RAW inputs up to 6K at 30fps while simultaneously looping out standard YCC video via HDMI to non-RAW compatible devices.
Any camera, any format. Anywhere.
Pair the Shogun equally well with smaller cameras as part of a minimal setup, or with full-size camera rigs on large-scale productions. Shogun is made from precision materials and crafted for maximum durability with a solid aluminium frame. Weighing only 360g (0.79lbs), you can use it comfortably with a handheld camera. Shogun includes anti-rotational ⅜ – 16 mount points on the top and bottom. It ships with a ¼ – 20 adaptor for easy mounting on industry-standard equipment from a wide range of manufacturers.
Introducing
RemoteView
Atomos RemoteView lets you share incoming video on your Atomos screen with other Atomos monitors, as well as with iPads, Macs and Apple TVs wirelessly. You can monitor what’s happening on-set and look through any connected camera taking the shot from anywhere in the world.
Your camera’s view, anywhere
Remote view doesn’t need expensive hardware and uses the public internet, so it’s global. But Atomos technology ensures there are no delays. You can receive up to four RemoveView feeds on a single screen. It’s all configurable from a simple web interface.
Powered by a unique combination of AtomOS 11 and Atomos Cloud Studio, you can share with the person standing next to you or someone across the globe just as easily.
Secure and personalized
For absolute security, you can burn a watermark into each remote video feed, so there’s no risk of copying. You can also brand your footage with your own or your customer’s logo. Or put the movie name, date, type of camera – any information you think will be helpful, burnt into your remote feeds.
Atomos RemoteView requires a subscription to Atomos Cloud Services. It uses Atomos Credits for a simple ‘pay as you go service’.
On set. In post. Get creative.
Stage clever cinematic shots and save time in post-production with the powerful Onion Skin and Frame Grab features built-in as standard. Onion skin overlay simplifies stop-motion and jump or match cuts. Capturing frame grabs live on set saves time making thumbnails and acts as a quick reference to share with the team.
A complete monitoring toolbox
Shogun includes comprehensive monitoring tools to help you get the perfect composition and exposure in every shot. Easy-to-use but powerful tools include waveform, focus peaking, multiple false color tools, zoom controls, custom LUTs, and frame guides. Shogun’s new AtomOS 11 software is simple to update with new features and releases – as well as support for new cameras.
- Waveform
Evaluate the brightness of your image, regardless of the color - Aspect Ratios
Easily switch between aspect ratio guides for instant and accurate framing - Anamorphic De—squeeze
Compensate for non-spherical anamorphic lenses to show a visually corrected wide-screen image - False Color Options
New with AtomOS 11: ARRI False Color and EL ZONE System - Custom Frame Guides
Frame shots with confidence, for social media or cinematic productions
A highly secure mount
From individuals to large-scale cinema productions, Shogun has been built to fit into any camera rig. It features a versatile mount that can be adapted to suit different industry-standard equipment from a wide range of manufacturers. Once locked in place the mount is highly secure and offers anti-rotation settings, so you can trust Shogun to remain in place at all times.
Connect. Control. Configure. Create.
The AtomRemote app for iOS and macOS has an array of controls for Shogun. It lets you configure and control your Shogun from up to 15 meters away via Bluetooth LE while you define camera connections, select Gamma/EOTF and adjust Gamut settings. AtomRemote can control playback, select monitoring modes, apply custom 3D LUTs, and view image analysis tools, including exposure and focus. Output controls include options for 4K to HD, LUT preview and HDR output.

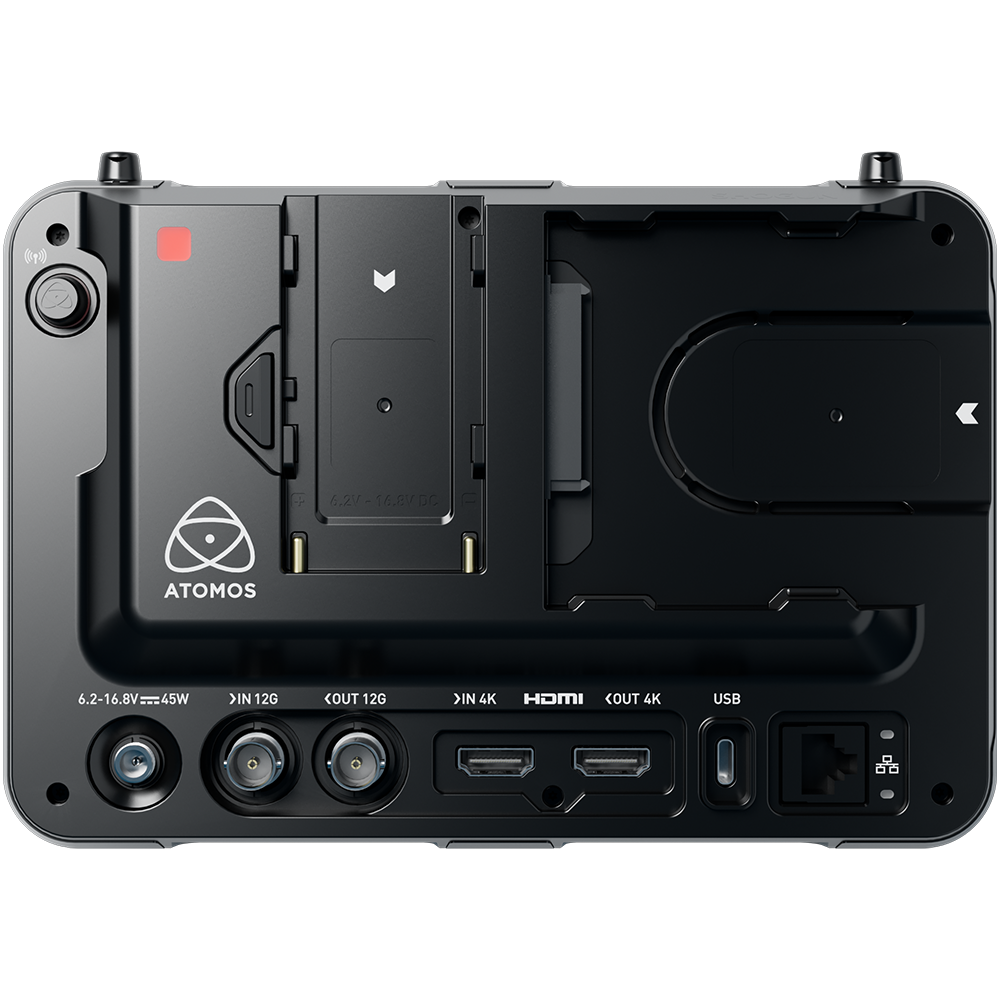

Connectivity. We've got you covered.
Shogun’s comprehensive range of inputs and outputs lets you capture the highest quality video from the widest range of cameras, and connects you to the cloud, for new, ultra-speedy and productive workflows.
Add value to your production
To save space and support longer recordings, many cameras record compressed 4:2:0 8-bit video internally. If the camera is able to output video via HDMI, the quality can often be preserved in a 4:2:2 8-bit or 10-bit format. Shogun can record more color information and immediately add value to your production with your existing camera rig.
Additionally, if you’re shooting Log footage, the ability to bypass internal compression will offer the best possible dynamic range. Shogun is designed to maximize the quality of your videos and allow you to extend every aspect of your creative vision. Shogun also includes 12G-SDI input, the standard on high-end cinema cameras, including the Sony FX series, Panasonic EVA1, and Canon EOS C series. The robustness and utility of SDI is critical for the productions that rely on it. SDI RAW provides the ultimate experience in terms of flexibility and quality, which makes Shogun the ideal choice for big budget filmmakers around the world.
Perfectly synchronised
Atomos AirGlu™ is included with the Shogun and adds wireless timecode, sync, and control technology. AirGlu locks multiple Atomos devices or compatible cameras, audio recorders, and software applications together so that they share the same frame-accurate timecode. It is also able to relay recording, battery status, and disk capacity information to the server unit. Any AirGlu device can act as the server unit, which means you’ll no longer need a huge budget or get involved in time-consuming post-production workflows to produce perfectly synchronized, multi-camera video. AirGlu BT is the Bluetooth timecode sync protocol adopted by many camera and audio manufacturers and AirGlu RF is the long-range sync and control protocol between Atomos connect products.
Versatility and power
With flexible options for industry standard formats and RAW codecs, Shogun records visually lossless “hero” files that are ready for editing and proxy/sharable files that look great but are quick to upload.
Shogun is designed to be versatile and meet the requirements of your workflow. Atomos understands the value in being able to select the format, quality, resolution, frame rate, or file size that best suits the needs of your production.
Record without limitations
The ability to record up to 6K using advanced edit-ready formats including ProRes RAW, ProRes, and DNxHD/HR requires fast, robust, and expansive storage. Shogun supports removable SSD drives, which provide the space and sustained performance to meet these needs.
AtomX SSDmini drives are more compact than standard SATA SSDs and offer an affordable alternative to an SD card of similar capacity or performance. They support up to 4TB storage, sequential read speeds of up to 550MB/s and write speeds up to 500MB/s. The AtomX SSDmini drives are able to record up to 150 minutes of 4K ProRes. Measuring 8cm long, 7.5cm wide and weighing as little as 88g, the custom-built drive neatly fits into the Shogun Connect without impacting the overall footprint of the device.
More flexibility
There is an optional SSDmini adaptor that allows CFAST II cards to be used, enabling you to recycle older media cards or align with your camera media. Alongside SSDmini we also qualify a range of 2.5-inch SSDs that can be used in conjunction with the MasterCaddy III adaptor in the Shogun box.
With Shogun the only limitation to how much you can record is the size of the SSD. A core principle of Atomos devices is to provide much more flexibility in terms of recording codec, resolution, and frame rate than is normally available with internal recording. SSD media also provides more GB per $ than camera media cards. This provides extended recorded times for long form productions or recording events.
