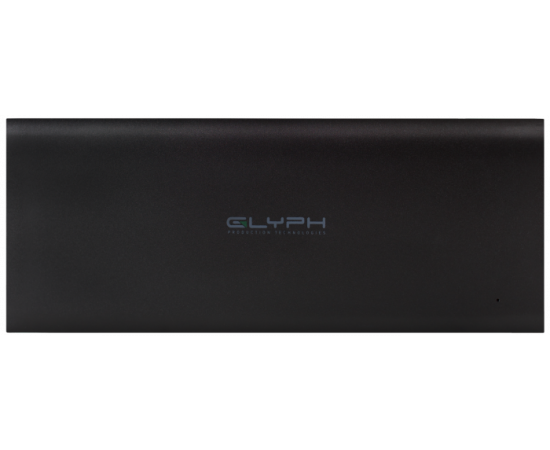

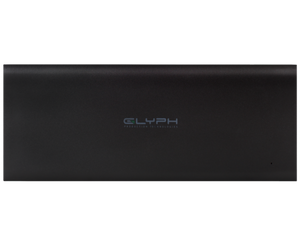

Glyph Thunderbolt 3 Dock 500GB SSD

THUNDERBOLT 3 DOCK
Designed to sit at the center of your creative universe. Glyph’s Thunderbolt 3 dock delivers more ports, more power, and more storage at the fastest speeds possible.




The only Thunderbolt 3 Dock that matters.

Whether you're looking to simplify your workstation setup or you're a DIT looking to streamline your cart, Glyph's Thunderbolt 3 Dock gives you all the ports you need with the option to add an NVMe SSD (user-upgradeable). Enclosed in a rugged aluminum frame and built to last.



SPECIFICATIONS

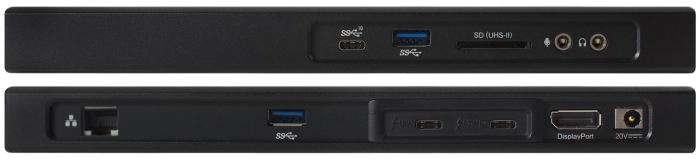

INTERFACE

Thunderbolt 3, 40Gbps (x2)
Displayport 1.2 (x1)
SD (UHS-II)  (x1)
USB 3.0 type-A  (x2)
USB 3.1 Gen2, typce-C (x1)

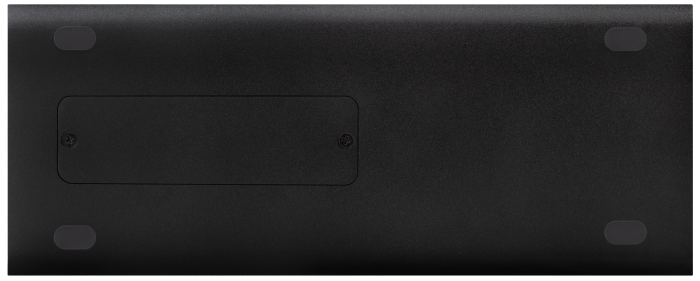

M.2 socket for NVMe SSD (x1)
Audio out (x1)
Mic out (x1)
1Gb Ethernet (x1)
FEATURES

Supports:
Single 5k display @ 60Hz (5120x2880)
Dual 4K displays @ 60Hz
Supports 87W power delivery
SD (UHS-II) speeds up to 270MB/s
USB 3.0 type-A supports 5Gbps / 5V @ 1.2A
USB 3.0 type-C supports PD 5V @ 3A
M.2 socket supports PCI-e Gen.3 x2
TRANSFER RATE


NVMe SSD speeds up to 1,500 MB/s
CAPACITY

NoSSD
500GB
1TB
2TB
COMPATIBILITY

Mac OS 10.X or above
Windows 10 or later
Computer with Thunderbolt 3 port
COOLING


Passive heat dissipation
DIMENSIONS


9.4" x 3.75" x 0.9" in
IN THE BOX

Thunderbolt 3 Dock
Thunderbolt 3, 40Gbps cable
87W power supply
>


EXPAND YOUR CAPABILITIES
Connect all your peripherals and charge your Thunderbolt 3 (USB-C) enabled Macbook Pro with a single cable. Our Thunderbolt 3 Dock has up to 40Gbps of throughput for data and video, and the ability to daisy chain up to five (5) additional devices.

SOLID STATE OF MIND

The first Thunderbolt 3 Dock to integrate the power of NVMe SSDs. With speeds up to 1,500 MB/s, you can increase capacity without sacrificing performance. Preformatted HFS+ with Journaling and is Time Machine compatible out of the box. A simple reformat is all it takes to work with Windows systems.
