Kiloview D260 HD IP to SDI/HDMI/VGA Video Decoder
Kiloview D260 HD IP to SDI/HDMI/VGA Video Decoder
Key Features
Description
Description
D260 is Kiloview’s newest H.265 1X3G-SDI+2XHD HDMI decoder which builds on the capabilities of our original decoder DC230 with expanded new features including upgraded decoding performance, extended ports, more protocols supported and a new LCD screen. Everything you need about decoding is packaged in this single unit with low cost.
Upgrading Decoding Performance with H.265/H.264
D260 now supports decoding in H.265 format and up to 4-channel of video streams in 1080p60 simultaneously. All 4 video outputs can be custom to single display or PIP with adjustable figures.
More Protocols Supported
For all IP-based video transmission process, D260 supports the latest NDI technology – NDI|HX3*, NDI|HX2, SRT, RTMP/RTMPS, HLS, TS over UDP, and RTP/RTSP
* Support of NDI|HX3 is still in beta version.

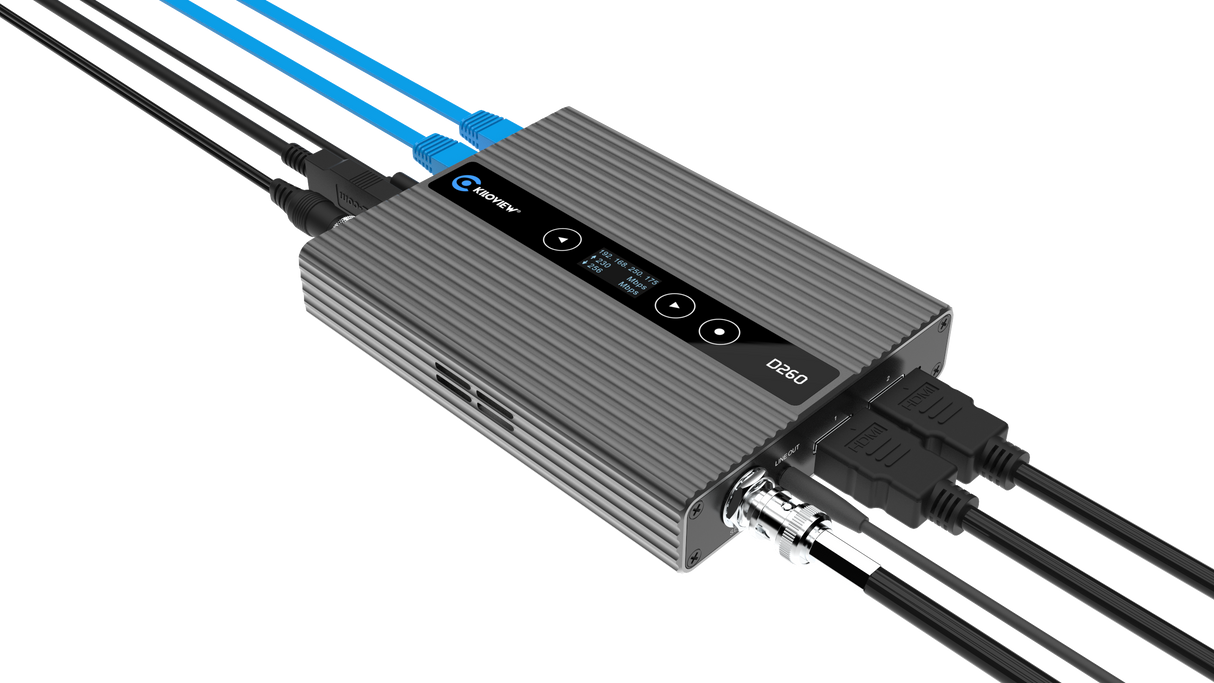

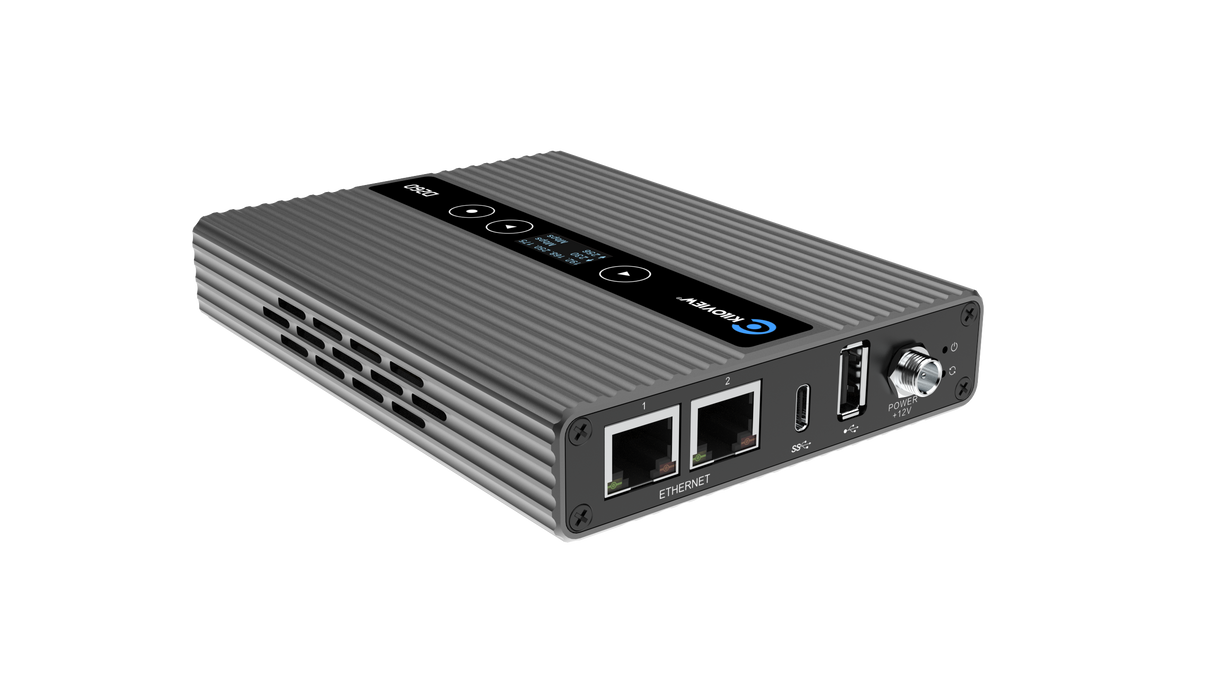

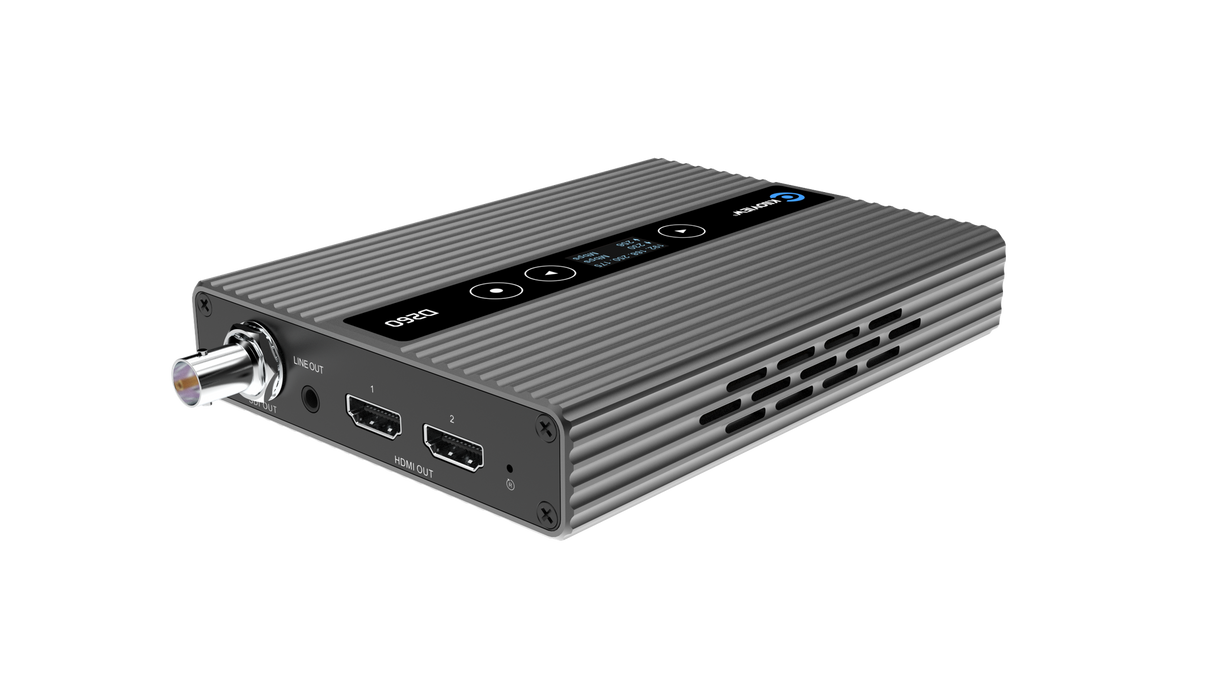

Extended Output Interfaces
As an upgraded version of DC230, D260 adds a couple more interfaces for advanced application. Now D260 is equipped with two HDMI 2.0 ports, one 3G-SDI port and 2 USB ports(one USB Type-A and one USB Type-C)to ensure the scalability, It’s capable for outputting in three ways: Independently, Combine multi-channel video flows or replicate of one single flow to stream simultaneously.
16 Preview + 4 Output
D260 supports “preview + output” mode, in which you can preview 16 video streams and select 4 of them to display on the screen for output simultaneously. This feature can also be used for monitoring (PVW/PGM).
Powerful Audio Decoding
D260 is also super powerful in audio decoding. With a long list of audio formats supported including AAC/MPEG-4/MPEG-2/G.711/Opus/LPCM, It’s also capable of switching audio On/Off, audio mix and audio gain in real-time to output alternatively through its HDMI ports, SDI port and 3.5mm line out port.
Custom Layouts
Custom multi-output display is also allowed for D260(including custom grids/PIP/simply drag and drop). All things about display(bit-rate and resolution) can be customized.

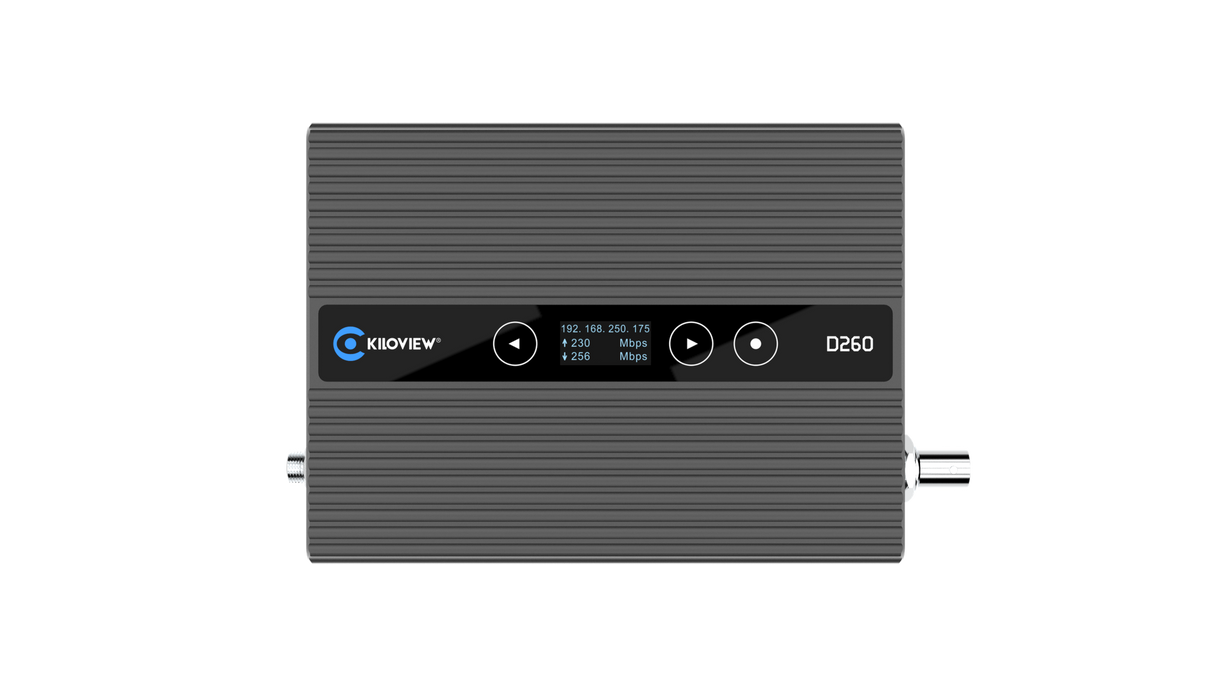

Display and Touch Button
D260 is equipped with an LCD screen with touch buttons for a better user experience. With the built-in LCD screen, users can easily check transmission status in real-time.
