Laowa | SKU:
VEAU1050PL

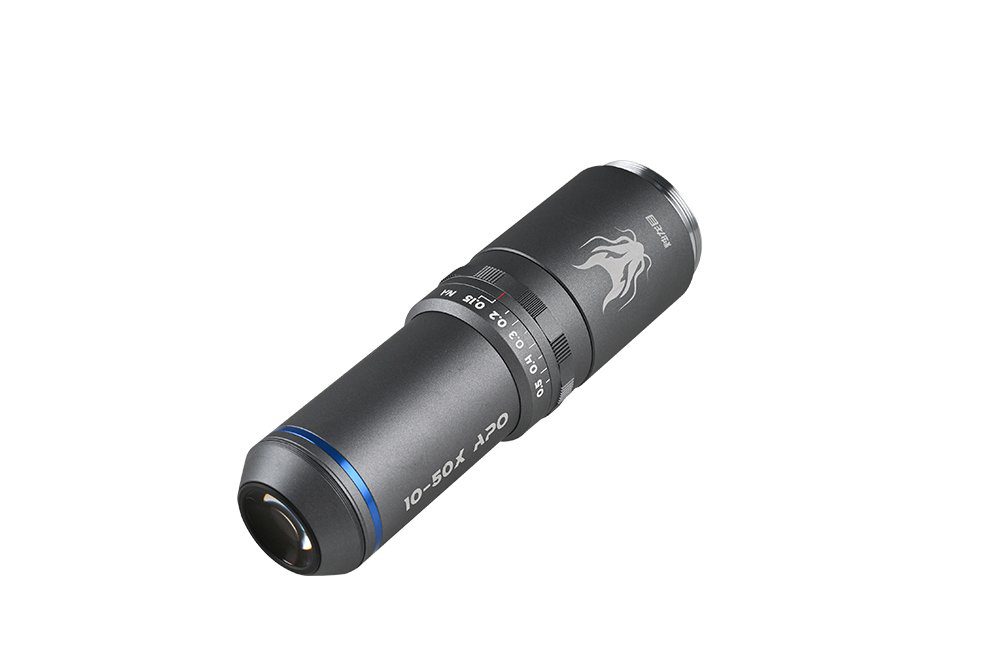

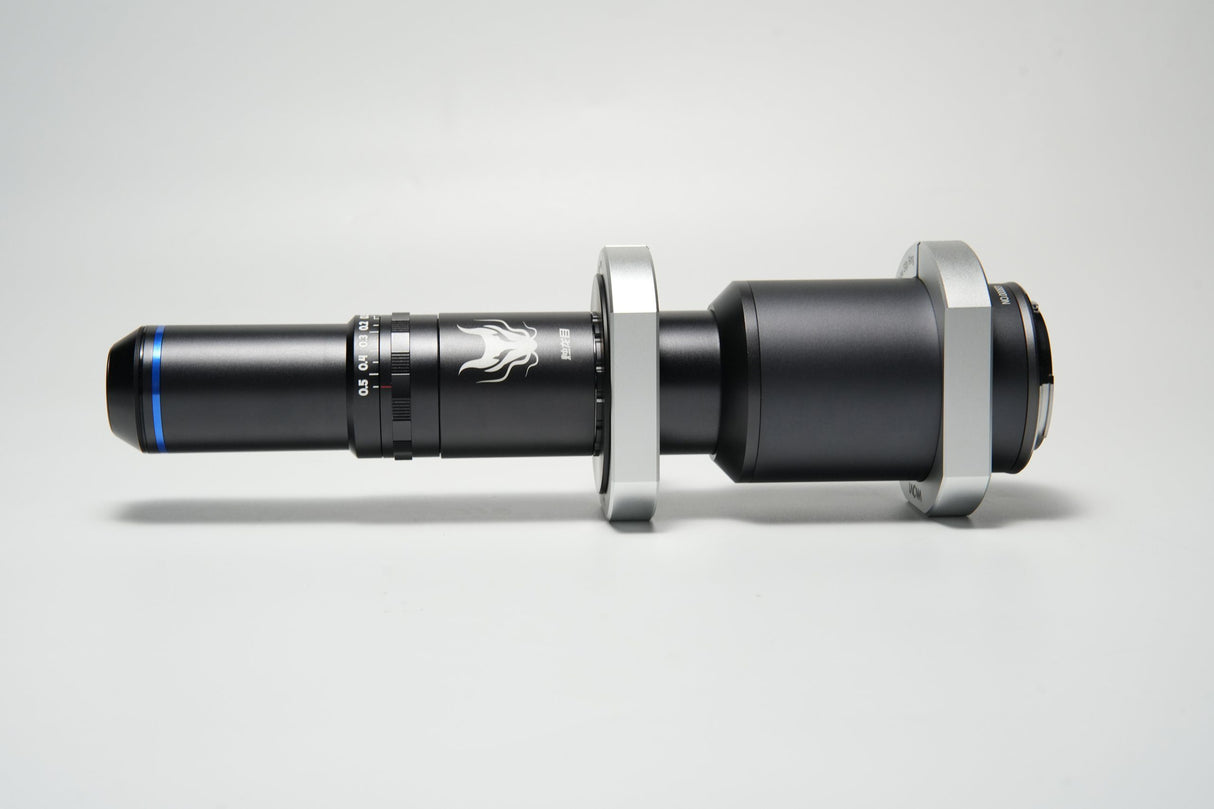

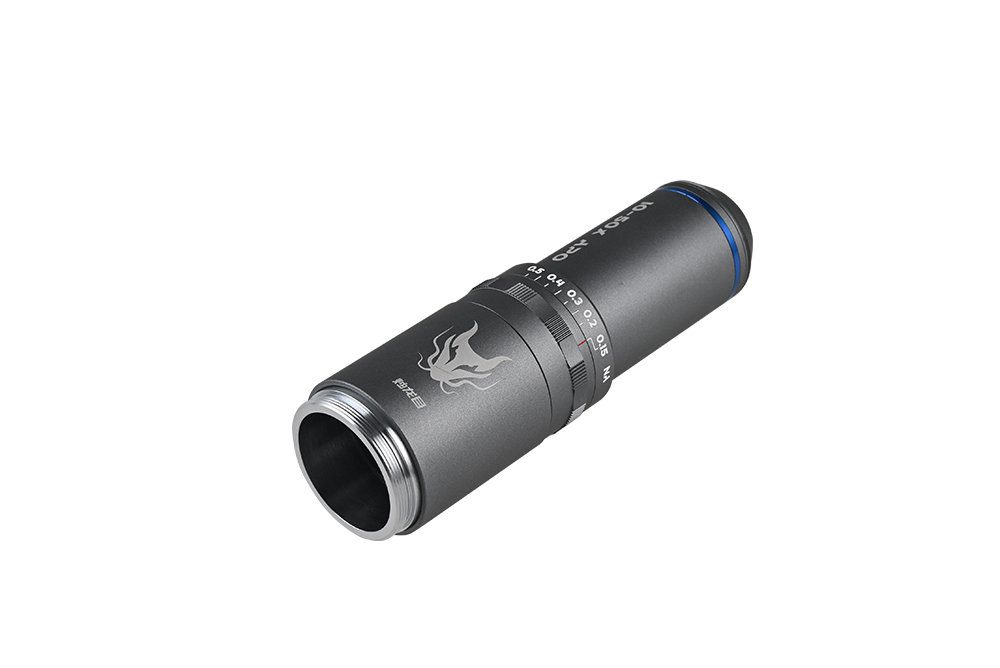

Laowa Aurogon FF 10-50X NA0.5 Supermicro APO
$1,500.00
Unit price
/
Unavailable
Laowa Aurogon FF 10-50X NA0.5 Supermicro APO
$1,500.00
Unit price
/
Unavailable
Key Features
Description
Description
| Laowa Aurogon FF 10-50X NA0.5 Supermicro APO | ||||
|---|---|---|---|---|
| Magnification | 10x | 20x | 35x | 50x |
| Adjustable numerical aperture（NA） | 0.5/0.45/0.4/0.35/0.30/0.25/0.2/0.15 | |||
| Working distance (mm) | 20 | |||
| Maximum objective diameter (mm) | 50 | |||
| Length of objective lens (mm) | 167 | |||
| Weight of objective lens (g) | 390 | |||
| Aperture blades | 9 | |||
| Wavelength range (nm) | 435-656 | |||
| Objective lens+tube lens focal length (mm) | 18.8 | 10.3 | 6.85 | 5.56 |

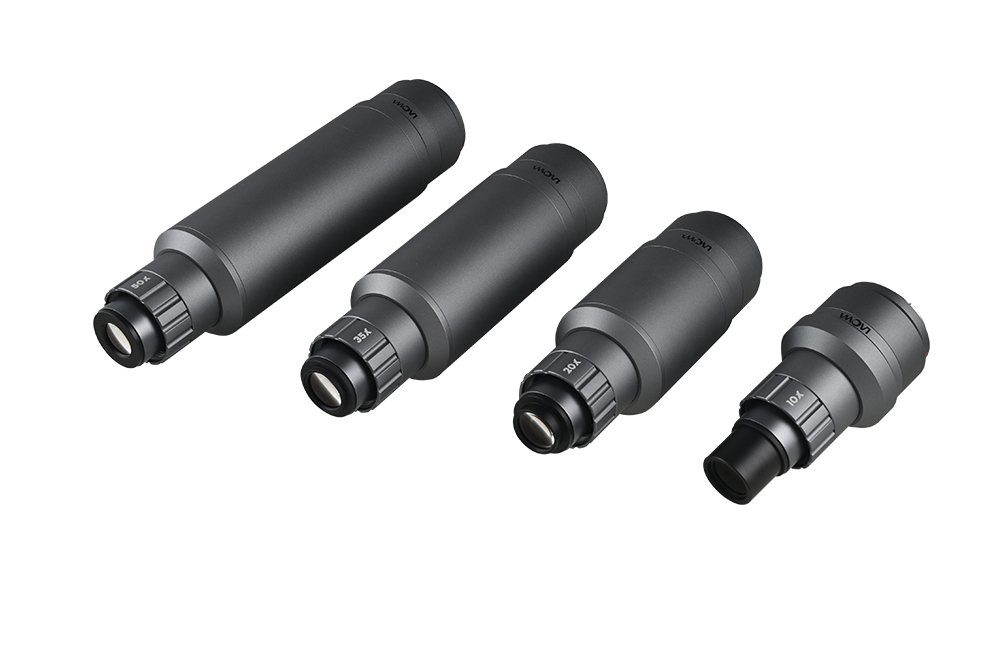

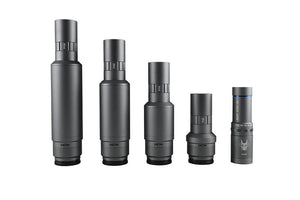

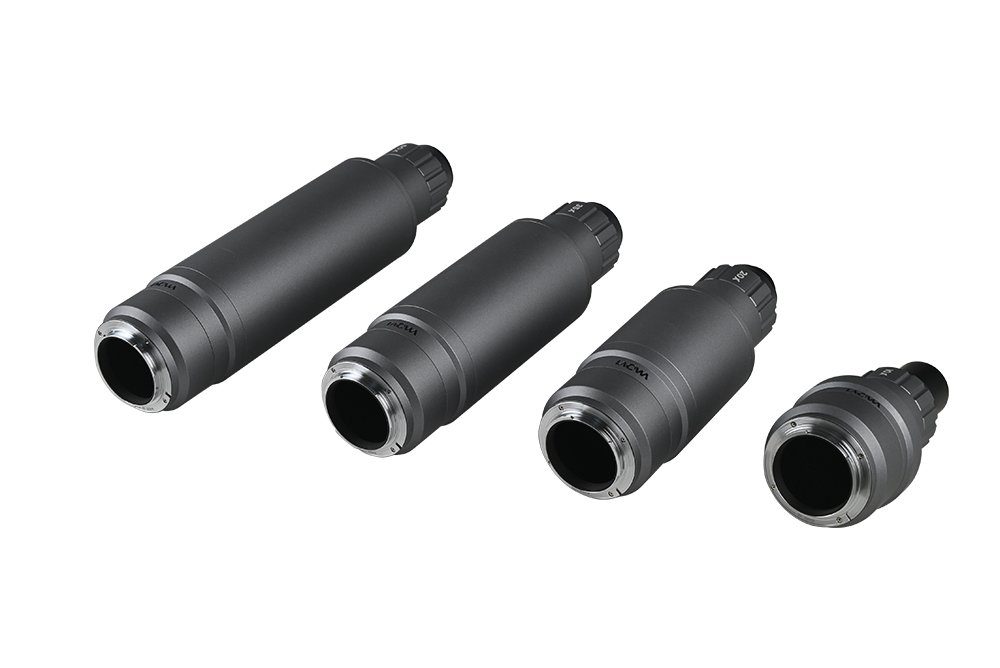

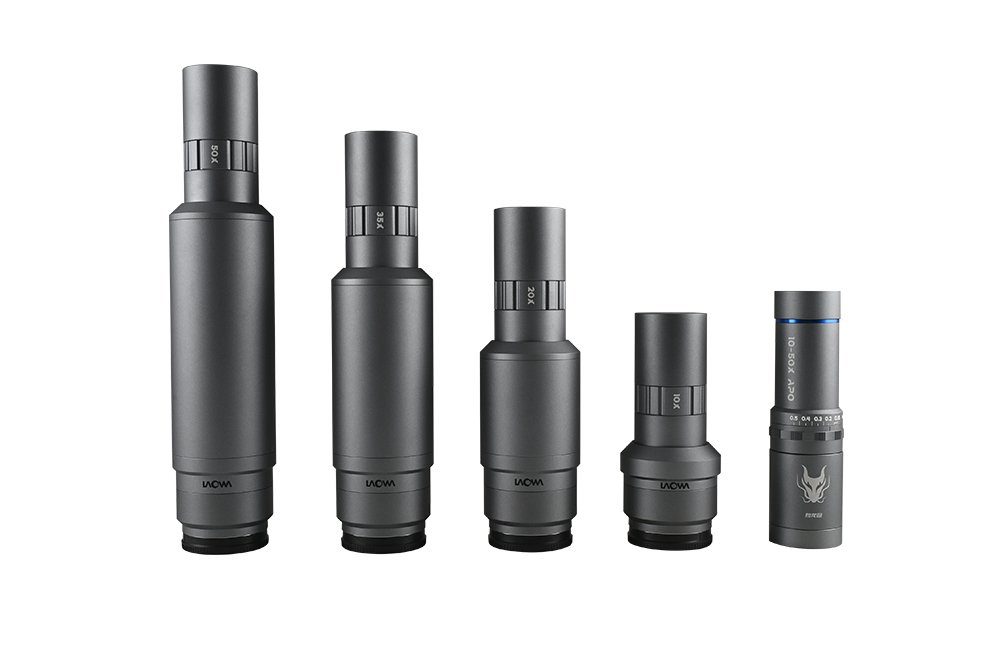

| Special tube lens for Laowa model | 10X Magnification tube | 20X Magnification tube | 35X Magnification tube | 50X Magnification tube |
| Maximum diameter of tube lens (mm) | 70 | |||
| Length of tube lens (mm) (excluded cover) | 112 | 163 | 210 | 253 |
| Weight of tube lens (g) | 377 | 444 | 530 | 609 |
| Maximum distortion | 0.60% | 0.80% | 0.40% | 0.40% |
| Image field diameter | Full frame (24mm×36mm) | |||
| Conjugate distance (mm) | 299.4 | 370 | 420.2 | 465.1 |
| Mount | PL / EF / F / E / RF / Z / L / GFX | |||
