VCT Pro Jr. Baseplate
Key Features
Description
Description

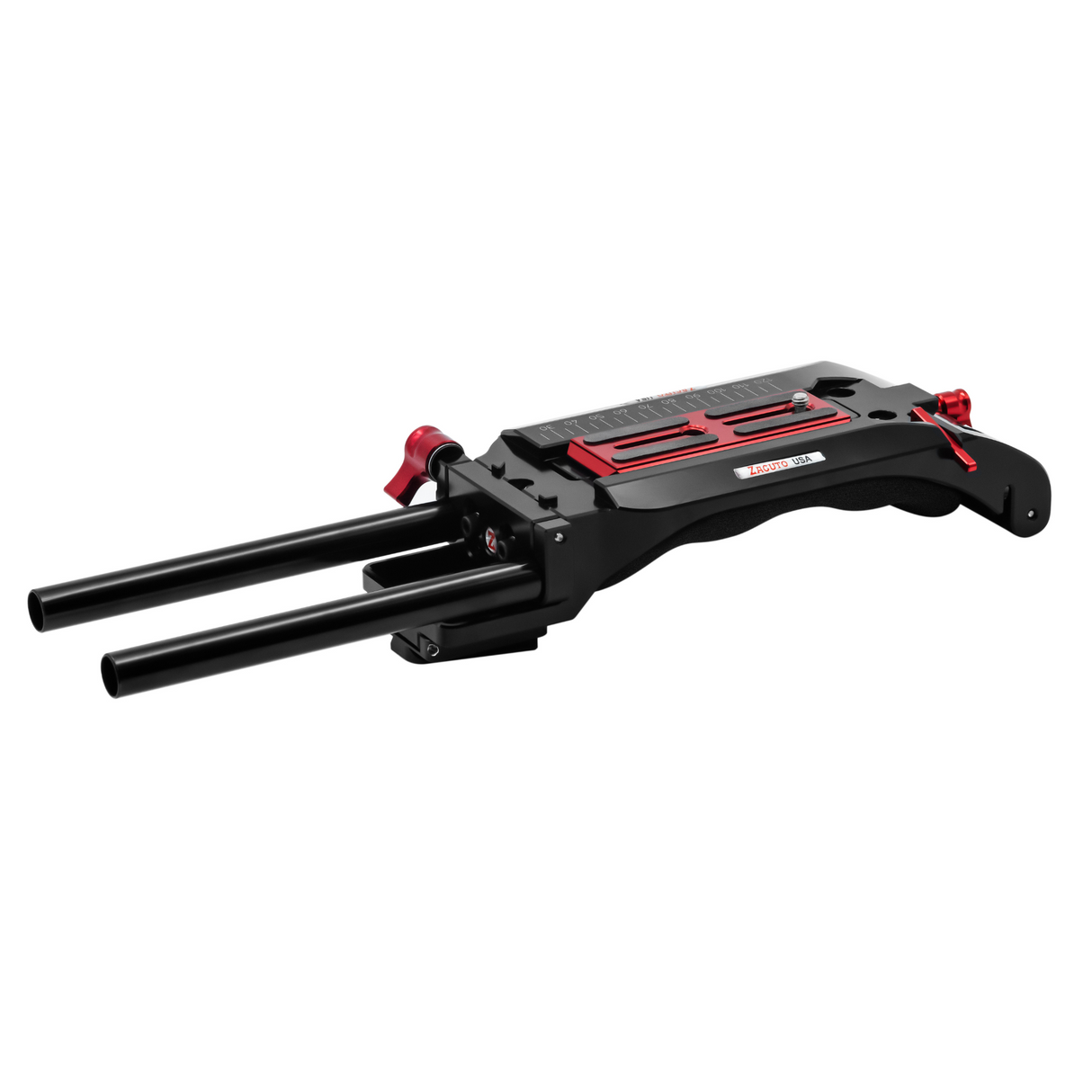

The VCT Jr Baseplate is Arca Swiss on the top and VCT14 on the bottom. This plate has all the great features of our popular VCT Pro Baseplate. This baseplate is compatible with all cameras and has the best shoulder pad in the industry!

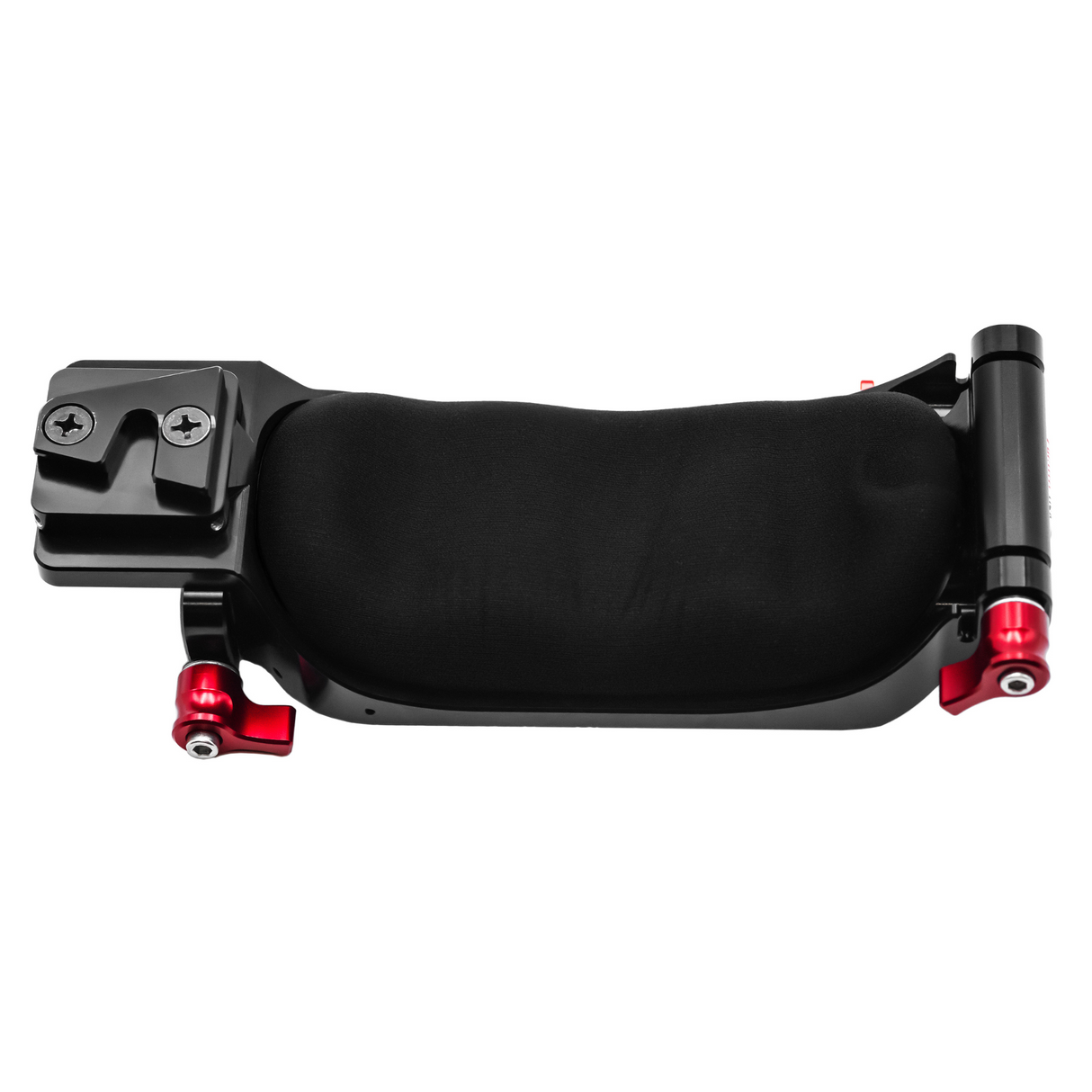

The VCT Jr. has a built-in, curved shoulder pad made of gel. It comes with quick-release, extendable 6.5” rods at the front, and lightweight spaced quick-release rod ports at the back. The v-wedge tripod connector is compatible with VCT14 tripod adapter plates or the 1/4 20 and 3/8 16 screw holes for direct connection to your tripod quick release plate.
The red Arca Swiss compatible sliding top plate offers easy adjust-ability for lens changes, removing your camera, and balancing your rig correctly on your shoulder. This sliding plate combined with a double screw track offers 6” of camera balance sliding range. You can quickly release your camera from the rig by sliding the red plate completely off and using our ACT Mounting Plate or any Arca Swiss compatible tripod mount to quickly transition it to a tripod, slider, etc.
The lightweight, adjustable rod mount is set far back in the plate, offering plenty of accessory-capable area under the camera lens. This allows you to position your camera further back on the plate, keeping the balance point of your rig directly over your shoulder. The sliding track of the rod riser offers 25mm of vertical adjustment.
SPECIFICATIONS
9.5” x 4” x 2” (LxWxH) with 6.5” rods
Two quick releasable 6.5” rods included
Weighs 2.7 lbs
Two quick-release rod ports in the back
Wide gel-polymer shoulder pad
One ¼ 20 & ⅜ 16 removable screws included
Lightweight adjustable rod mount
Over 6” of camera balance sliding range
Up to 25mm of vertical adjustment
Unique sliding top plate to quickly adjust for lens changes or to release the camera from your rig
Use the included camera mounting plate or mount your Zacuto cage directly in the baseplate’s Arca Swiss compatible lock
Unique design creates more accessory rod capable area for follow focuses, matte boxes, etc.
V-wedge style tripod connector is compatible with VCT14 tripod adapter plates
¼ 20 screw holes along the side for accessory mounting options
Replacement 1/4-20 and 3/8-16 Screws
